How are the SDI connectors mapped on my Flex4 server

January 5, 2021
Setup GuidesLegacySpecs/Overview Legacy

Applies to

  • Cablecast Flex4 servers using the Matrox LE4 SDI capture card.

Answer

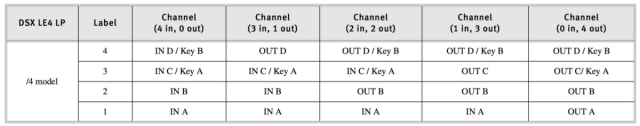

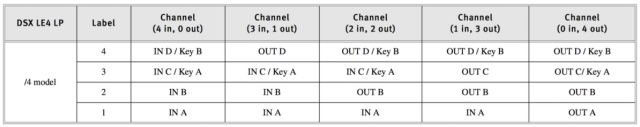

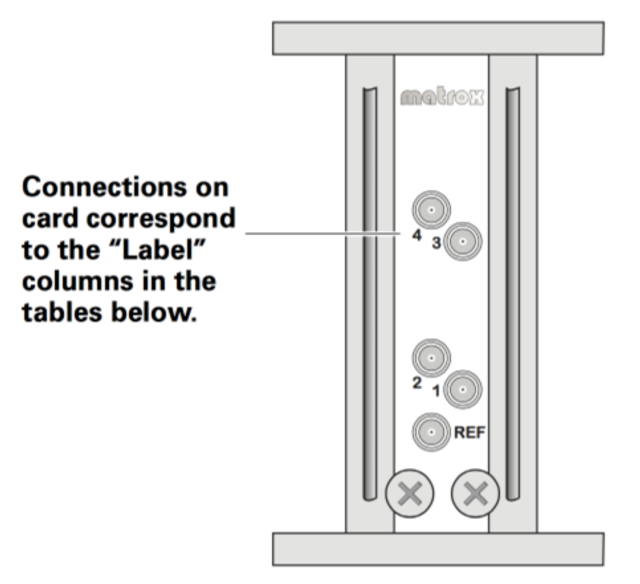

This card has reconfigurable IOs. Please refer to the schemas below;
