Reset or Replace CMOS Battery on Cablecast Systems

Items required

• A replacement CR2032 battery, can be sourced at most retail stores or from Amazon .
• A small flathead screwdriver for removing battery
• A small Philips screwdriver for removing case screws that secure lid

The example shown uses an SXLE but the steps are much the same for most Cablecast servers

Steps

• Unplug and remove server to gain access to the top lid.

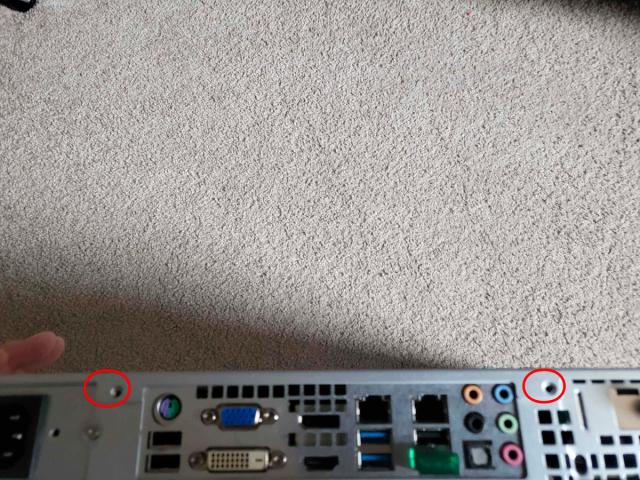

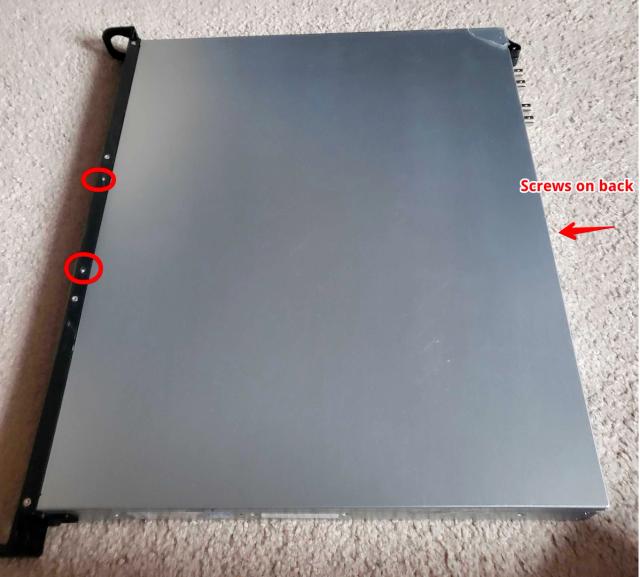

• Remove screws that secure top lid if applicable, the location and release mechanism will vary depending on the model.

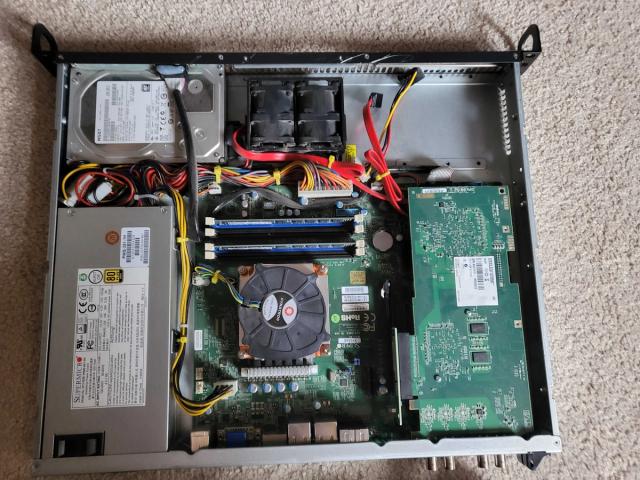

• Slide lid back and lift lid to remove and expose motherboard.

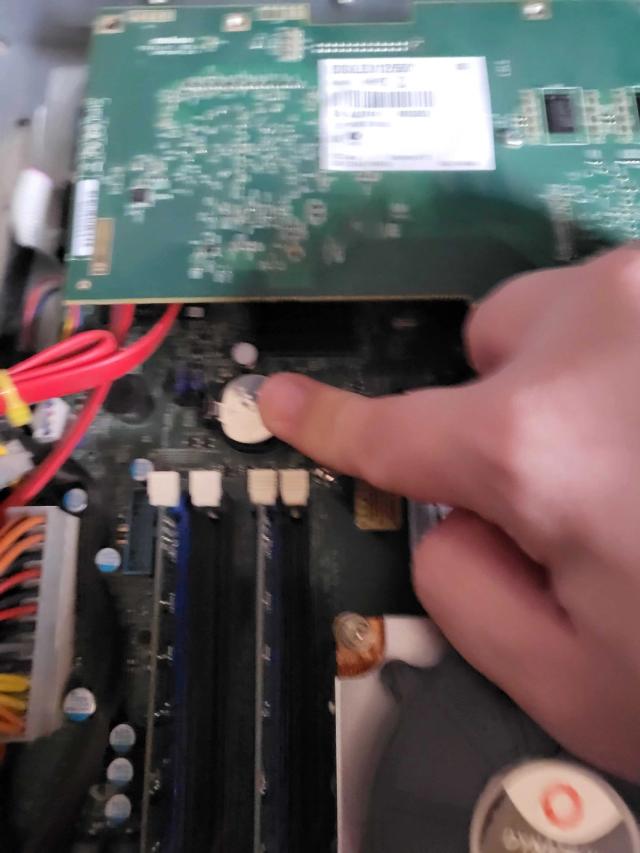

• Locate CMOS battery.

• Remove CMOS battery, it is recommended to use a flathead screwdriver to depress the latch so the battery will pop loose

• Depress power button on the server for 15 seconds.
• Insert replacement CMOS battery or reinsert existing one for a forced reset. Insert at an angle then depress until latched.

• Reinstall lid and secure system.
• Power up, this effectively erases the motherboard settings so startup may take longer than usual and have a restart before booting into windows.
